- Size: 14
- Place of Origin: luoyang
- Brand Name: SJH
- Model Number: SJH454
- Weight: 1965.000 kg
- :
- :
- :
- :
- :
- :
- :
- :

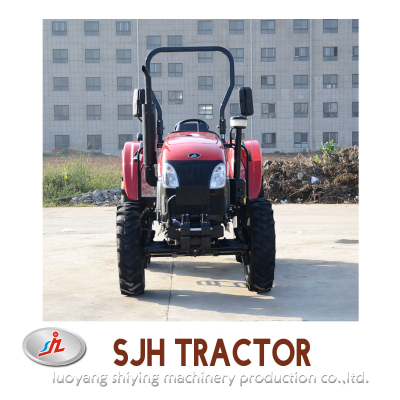

1.SJH tractors have the brand new sleek design with high end paint in bright colors to make them look stylish and trendy.
2. YTO engine is assembled to provide high HP along with low fuel consumption.
3. The brand new gear box has a wide speed range and good grade scales to
improve operation efficiency.
4. Hydraulic steering system offers light-weight and flexible handling and small turning radius with great mobility.
5. Three-point linkage will provide great lifting force.
6. Independent PTO fulfills rotary, harvesting, planting, fertilizing, etc.
7. Cabin, Air condition, hydraulic output and air brake all come with options.
8. Customers’ feedback and satisfaction are our priority and will lead our improvement.
- Size: 14
- Place of Origin: luoyang
- Brand Name: SJH
- Model Number: SJH454
- Weight: 1965.000 kg
- :
- :
- :
- :
- :
- :
- :
- :
Model | SJH400 /SJH404 | SJH450 /SJH454 | SJH500 /SJH504 | SJH550 /SJH554 | SJH600/ SJH604 | SJH654 | |
Type | 4×2 / 4×4 | ||||||
overall dimension(mm) | Length | 3980 | 4030 | ||||
Width | 1650 | ||||||
Height | 2130 | 2150 | |||||
Min.Ground Clearance(mm) | 400(2WD)/310(4WD) | 400(2WD)/325(4WD) | |||||
Wheel Tread(mm) | Front | 1150、1250、1350、1450(2WD)/1250(4WD) | |||||
Rear | 1350(1250~1550 for option) | ||||||
Structure Weight(KG) | With Cab | 2050(2WD)/2165(4WD) | |||||
Without Cab | 1870(2WD)/1965(4WD) | ||||||
Counter weight(KG) | Front | 120 | |||||
Rear | 300 | ||||||
Engine | Model | YSD490T | YD4JT | Y4100T | Y4102T(550)/YT4A2-23 | YT4B2-23 | |
Cylinder | 4 | ||||||
Capacity | 2.67 | 2.977 | 3.707 | 3.875(550)/4.15 | 4.4 | ||
Rated power(kW) | 29.4 | 33.1 | 36.8 | 40.5 | 44.1 | 48 | |
Rated Speed | 2400 | 2300 | 2300 | 2200(550)/2300 | 2300 | ||
PTO Rotating Speed(r/min) | 540/1000(option:540/760) | ||||||
Tyre | Front | 6.0-16(2WD)/8.3-20 | 6.50-16(2WD)/9.5-20 | ||||
Rear | 12.4-28 | 13.6-28 | |||||
Gearbox | F12 R12 | ||||||
Speed(Km/h) | 2.35 ~32.61 |
